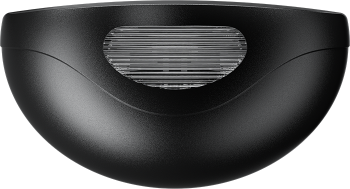

CNB-703 Multi-purpose microwave motion sensor
Vertical depth detection adjustment
Grasp the pivot handles on two sides of the sensor base and twist forward and backward in 12° increments and then position as needed (factory default is 36°).
Lateral detection area adjustment
Adjust the left and right side detection width respectively by DIP switch.
Functions adjustment
Adjust the functions and sensitivity by DIP switch and knob.
Sensitivity adjustment
Adjust clockwise, high sensitivity, adjust counterclockwise, low sensitivity. A total of 10 levels adjustable.

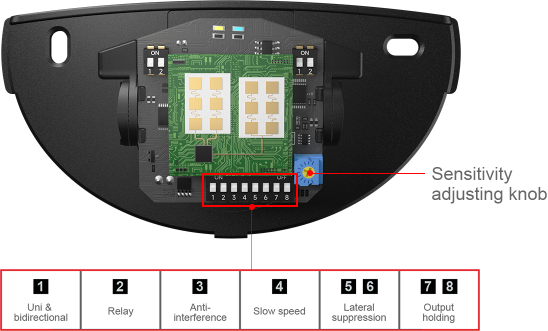

DIP switch NO.1
Uni & bidirectional
DIP switch NO.4

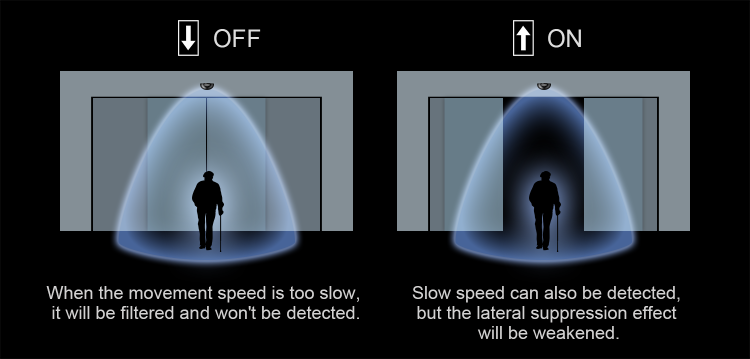

Slow speed
DIP switch NO.5.6

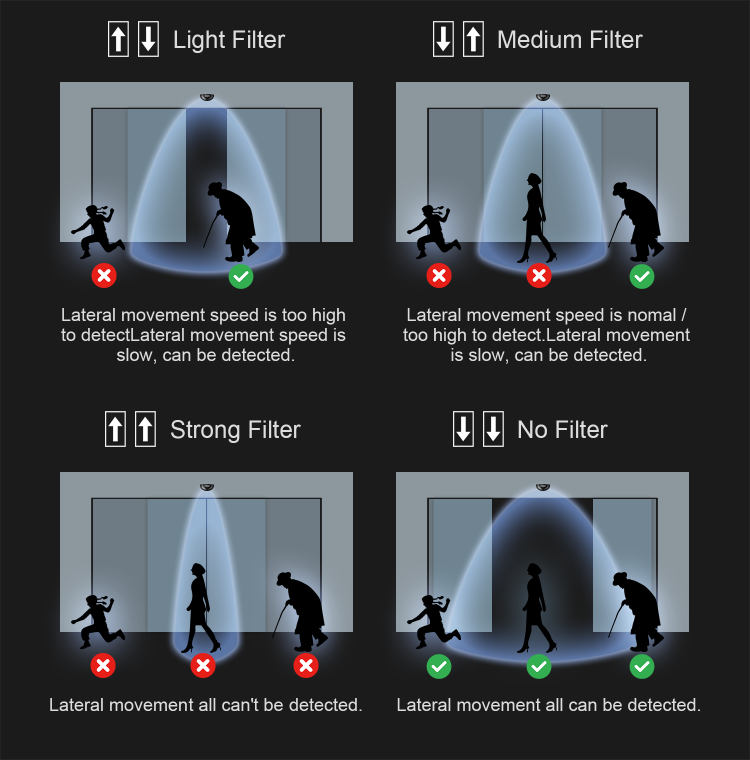

Lateral suppression
DIP switch NO.7.8

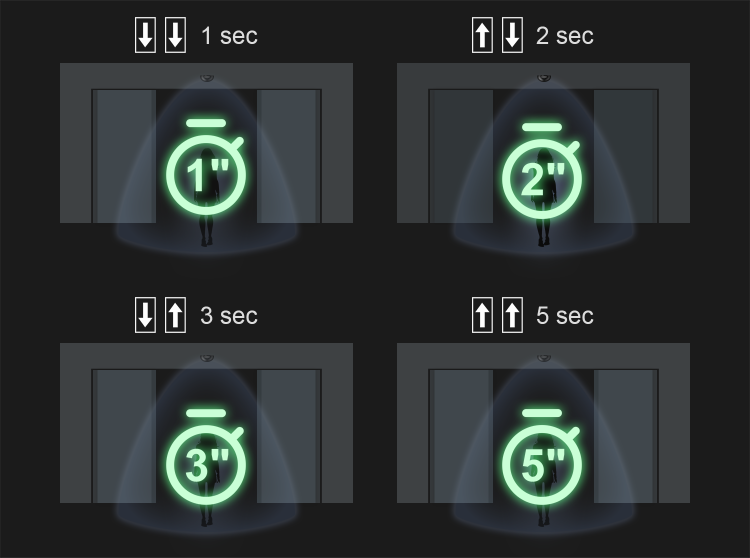

Output holding
Technical parameters
| Technology: | Microwave & microwave processor |
| Detect mode: | Motion detection |
| Detection speed: | ≥0.1m/s |
| Pitch angle: | 0~120°, 12° each level |
| Detection range: | 4*2meters (installation height 2.6 meters) |
| LED indicators: | Power on - blue flashes for 10s, standby - blue light, action - red light |
| Power supply: | AC 12~24V, DC 12~30V |
| Standby current: | 40mA (DC 12V) |
| Action current: | 75mA (DC 12V) |
| Signal output: | relay 1 contact NO/NC |
| Max contact power supply: | 42V AC / 60V DC |
| Max contact current: | 1A |
| Output holding time: | 1s, 2s, 3s, 5s adjustable |
| Working temperature: | -25℃~+55℃ |
| Working humidity: | 10%~90% RH (frostless) |
| Max installation height: | 4 meters |
| Cable length: | 2.5 meters |
| Sheating material: | ABS plastic |
| Microwave transmitting frequency: | <20dBm |
| Size: | 123.5(L)x57.6(W)x17(H)mm |
